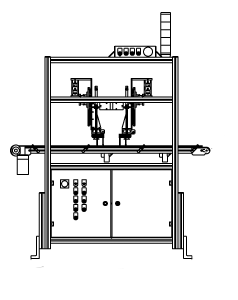

Fully automated system for applying protective tape to semi-finished lenses
Job trays are conveyed automatically via conveyor belt.

Automated protective tape system

Service position / Tape loading

Pick up the lenses

Your benefits at a glance

   • Process consistency due to fully automated handling

   • Low cost per lens through elimination of labor

   • Fast Return-on-Investment

   • Flexible: works with various tape types

   • Fast: up to 400 lenses/hour

Technical information

   • Materials
     For all tapes released from
     Optimal Optic Service

   • Working range
     Max. lens diamerter 83 mm
     Min. lens diameter 55 mm

   • Speed
     15 seconds per lens pair

   • Energy requirements
     Electricity: AC 110 - 240 V, 50 - 60 Hz
     Compressed air: 5 - 6 bar / 70 - 85 psi

   • Dimensions  w x d x h
     1470 x 1050 x 1670 mm /  58 x 41 x 66 inches

   • Weight
     222 - 249 kg  (Depending on equipment)
     490 – 549 lbs

   • Space requirement
